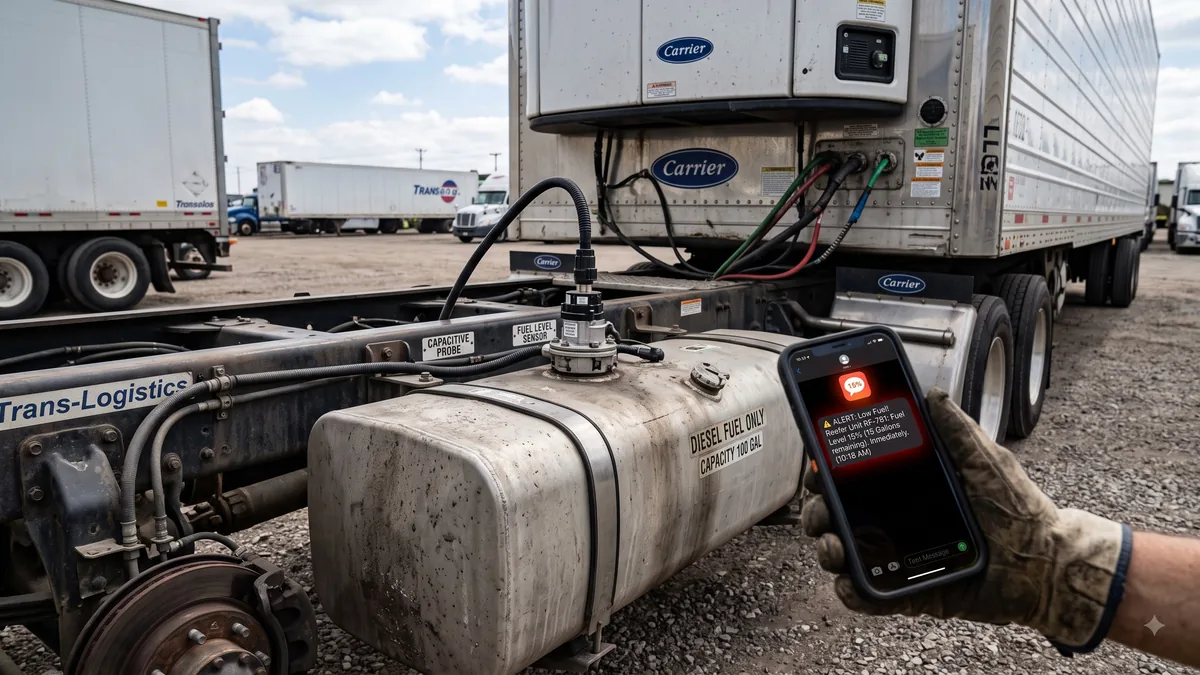

How Drivers Try to Bypass Fuel Sensors (And 5 Tamper-Proof Countermeasures)
Table of Contents
- The 5 Most Common Driver Sensor Tampering Tactics
- 5 Engineering Countermeasures That Eliminate Tampering
- Driver Accountability & Management Policy Matrix
- Questions to Ask Telematics Vendors About Anti-Tamper Security
- Hardened Telematics Security for Your Commercial Fleet
- Related Articles
- Explore WizIOT Solutions
A transport company installs in-tank fuel sensors across its 60 commercial haulage trucks to stop night-time diesel siphoning. Three weeks later, three sensors stop reporting data entirely, two show erratic zero-volume spikes, and one truck tank registers a sudden surge in liquid level without any fuel purchase. Upon physical inspection, technicians discover cut sensor wires, shorted electrical pins, and water poured directly into the tank.
When commercial fleets deploy fuel monitoring systems, dishonest drivers often attempt to sabotage or bypass the hardware to protect lucrative black-market fuel income.
If you are deploying fuel monitoring telematics across a commercial fleet, assuming drivers will accept sensors passively is naive. This guide details the 5 most common driver tampering methods and the hardware engineering countermeasures that neutralize sabotage attempts.
---
The 5 Most Common Driver Sensor Tampering Tactics
Tactic 1: Wire Cutting & Harness Pin Shorting Drivers locate sensor wiring under the cab or chassis rail and cut the signal wire using pliers, claiming the wire was "torn off by road debris." Alternatively, they insert a fine needle through wire insulation to create a subtle electrical short to chassis ground.
Tactic 2: Main Power Switch Disconnection Drivers disconnect the truck's main battery isolator switch (battery master switch) during overnight stops, assuming that turning off main vehicle power disables the telematics unit and allows unmonitored siphoning.
Tactic 3: Pouring Water or Contaminated Liquids into Fuel Tanks Because water is denser than diesel (1.0 g/cm³ vs 0.84 g/cm³), drivers siphon out 60 liters of diesel and replace it with 60 liters of water or dirty washing liquid, hoping to maintain tank liquid height and fool basic level float sensors.
Tactic 4: Direct Sensor Head Electrostatic Shock (Taser Attack) In sophisticated tampering attempts, drivers use high-voltage electrical spark devices (or stun guns) on exposed metal sensor heads, attempting to fry the internal microcontrollers without leaving physical marks.
Tactic 5: Sensor Head Unbolting & Baffle Interference Drivers attempt to unbolt the sensor flange from the top of the fuel tank or bend the internal capacitive tube against tank baffle plates to distort voltage readings.
---
5 Engineering Countermeasures That Eliminate Tampering
1. Flexible Stainless Steel Armored Wiring Conduits WizIOT eliminates wire-cutting vulnerabilities by enclosing all external sensor cabling inside heavy-duty, flexible stainless steel armored conduits.
- **Cut & Crush Protection:** Resists wire cutters, pliers, and road debris impacts up to 500 kg crush pressure.
- **Wire-Cut Tamper Detection Circuitry:** The telematics gateway monitors continuous circuit resistance. If a wire is severed or shorted, the system triggers an immediate **Sensor Tamper Alarm** to the control room within 1.5 seconds.
2. Internal Battery Backup & Standby Telemetry WizIOT telematics gateways incorporate internal high-temperature **Lithium Iron Phosphate (LiFePO4)** backup batteries operating independently of vehicle main power.
If a driver turns off the battery master switch, the gateway remains 100% active, logging location and fuel levels for up to 72 hours while broadcasting a **Main Power Disconnection Alarm**.
3. Dual-Dielectric Water Separation Sensing WizIOT capacitive fuel probes feature advanced dual-dielectric sensing elements that differentiate between diesel fuel (dielectric constant $\epsilon \approx 2.1$) and water ($\epsilon \approx 80$).
If water is poured into the tank, the sensor immediately identifies the high-dielectric liquid layer at the bottom of the tank, triggering an automated **Fuel Water Contamination Alert** before water enters engine injectors.
4. Optocoupled Surge & High-Voltage Isolation WizIOT sensor heads feature optocoupled circuit isolation and transient voltage suppressor (TVS) diodes capable of absorbing high-voltage electrostatic discharge (ESD) up to 25 kV. High-voltage taser attacks are safely shunted to chassis ground without damaging internal sensor microcontrollers.
5. Tamper-Evident Security Seals & Sealed Flange Bolts Sensor mounting flange bolts are secured using anti-tamper shear bolts and numbered metallic security seals recorded in the fleet maintenance register. Unbolting a sensor requires specialized tools and automatically breaks the registered seal, providing indisputable physical evidence of tampering.
---
Driver Accountability & Management Policy Matrix
| Driver Tampering Action | Hardware Detection Mechanism | Management Policy Action | |---|---|---| | **Severed / Cut Sensor Wire** | Wire-Cut Resistance Circuit Alarm | Instant Audit + Driver Pays Repair Cost | | **Main Battery Disconnected** | Internal LiFePO4 Battery Power | Automated Disconnection Warning | | **Water Added to Fuel Tank** | Dual-Dielectric Contamination Sensor | Formal Disciplinary Hearing + Suspension | | **Unbolted Flange Seal** | Serialized Metallic Seal Inspection | Immediate Driver Termination |
---
Questions to Ask Telematics Vendors About Anti-Tamper Security
1. *Are your fuel sensor wiring harnesses enclosed in flexible stainless steel armored conduits?* 2. *Does the telematics gateway include automated wire-cut and short-circuit detection alarms?* 3. *How long does the internal backup battery operate if main truck battery power is cut?* 4. *Can your fuel probes detect water contamination at the bottom of fuel tanks?* 5. *What ESD high-voltage surge protection rating does the sensor head carry?*
---
Hardened Telematics Security for Your Commercial Fleet
Don't let dishonest drivers sabotage your telematics investment. Secure your commercial fleet with WizIOT's armored wiring conduits, tamper detection circuits, and water separation fuel probes.
Request Anti-Tamper Security Demonstration
---
Frequently Asked Questions (FAQs)
**Q1: What happens if a driver claims sensor wiring was torn off by an unexpected tire blowout?** Stainless steel armored conduits resist high-impact tire tread strikes. Furthermore, the exact timestamp of wire disconnection is logged with GPS coordinates, allowing dispatchers to verify whether a blowout actually occurred at that location.
**Q2: Can drivers use magnets on the outside of fuel tanks to distort capacitive sensor readings?** No. Capacitive fuel probes measure electrical capacitance between inner and outer aluminum tubes, remaining completely unaffected by external magnetic fields.
**Q3: How does the system handle natural water condensation inside fuel tanks?** WizIOT capacitive probes feature a 15 mm bottom clearance gap that allows minor ambient condensation to settle below active sensing elements without triggering false water alarms.
**Q4: Do driver incentive bonuses really reduce hardware tampering attempts?** Yes. Combining tamper-proof hardware with monthly fuel efficiency cash bonuses shifts driver behavior, converting potential sabotaging drivers into active partners in fuel conservation.
---
